HomeChargerCH-7401SE 19.0V ~ 36V DC 4.7A 36V DC Max

CH-7401SE 19.0V ~ 36V DC 4.7A 36V DC Max

CH-7401SE 19.0V ~ 36V DC 4.7A 36V DC Max

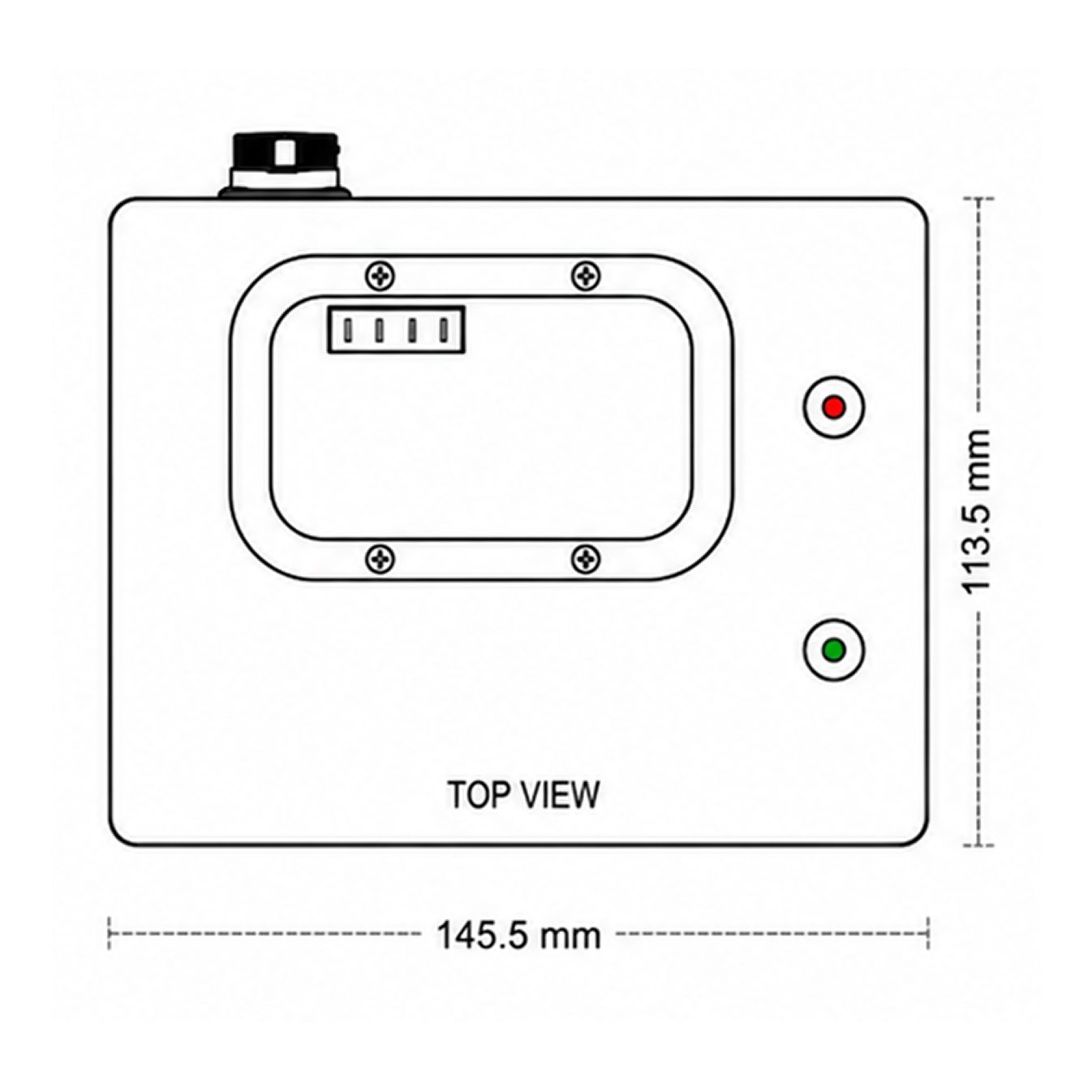

CH-7401SE 19.0V ~ 36V DC 4.7A 36V DC Max - Image 2

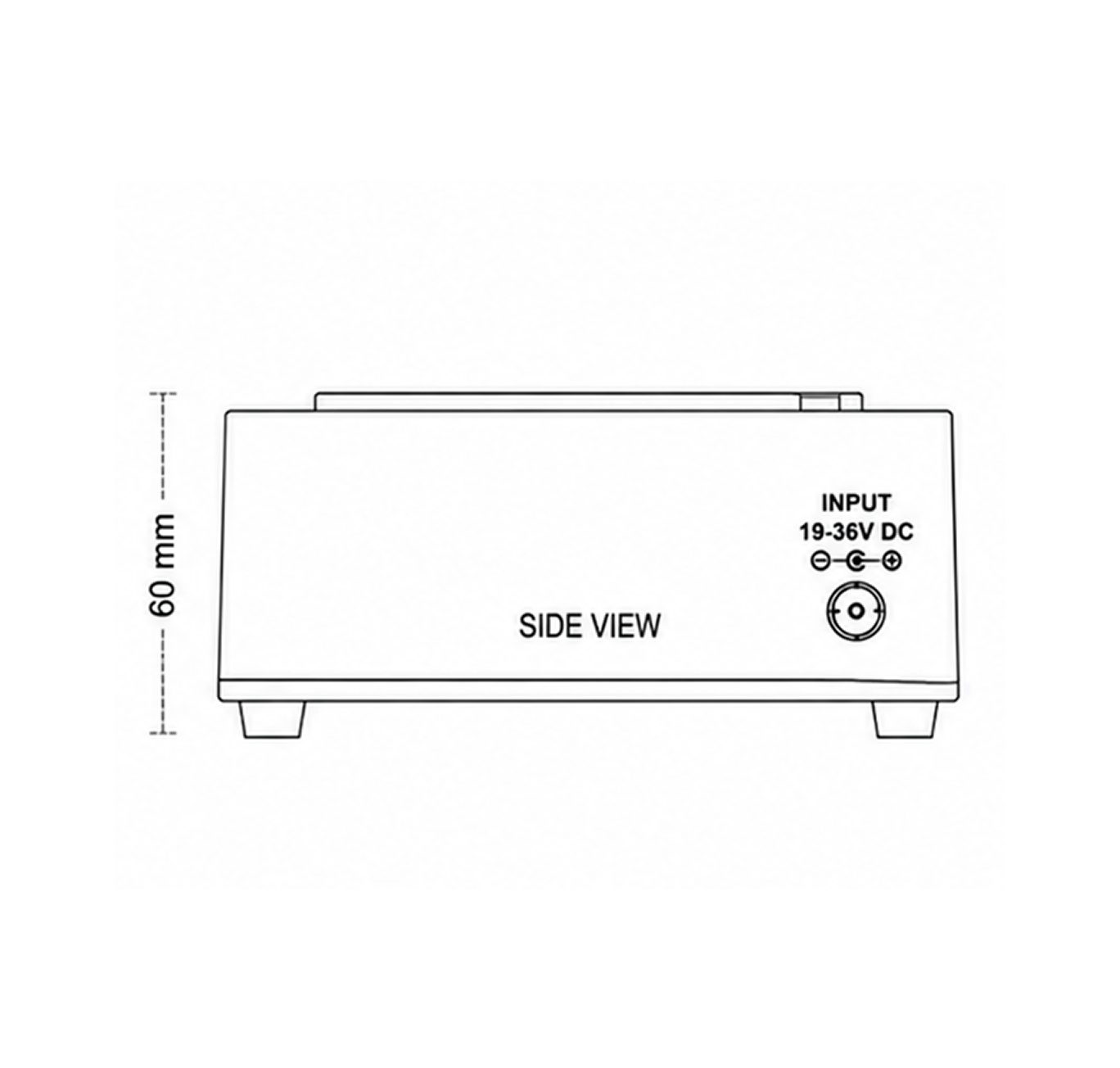

CH-7401SE 19.0V ~ 36V DC 4.7A 36V DC Max - Image 3

CH-7401SE 19.0V ~ 36V DC 4.7A 36V DC Max

Battery Models Supported

  • SE-2064-1
  • SE-2064-2
  • SE-2067-1
  • SE-2067-2

Key Features

  • Single bay charger
  • For the standard battery models SE-2064-x and SE-2067-x
  • Optimized charging for smart batteries
  • Ultra low leakage current (<100µA)
  • Simple operation – Plug and Play
  • Meets international medical and industrial safety standards

Charger Architecture

CH-7401SE is a 1st Generation, Level-II SBS v1.1 Li-ion Smart Battery Charger. It communicates with the battery via SMBus and automatically provides the required charging voltage and current. The charger is capable of charging 16.8V to 33.6V Smart Li-ion batteries.

CH-7401SE
Part Number
19.0V
Nominal Voltage
Quick Enquiry
12 Months Warranty
Quality Assured
Long Service Life
Technical Support
Input
Input Voltage 19.0V ~ 36V DC
Input Current 4.7A @ 36V DC Max.
Stand by Power No load < 0.15W
Output
Voltage Range 16.8V ~ 33.6V DC
Current Range 0.1 ~ 5.0A
Voltage Tolerance ±1% max.
Current Tolerance ±1% max. @ 5.0A
Charge Power 160W maximum each
Protection Short circuit, output over current and over temperature shutdown
Weight
Product Weight 600 gm

Additional information

Volts

19.0V
